Forms SDK

The Default Forms SDK makes it easy to connect your hosted forms to Default’s platform. It streamlines form submissions, event management, and scheduler integration to enhance your workflows.

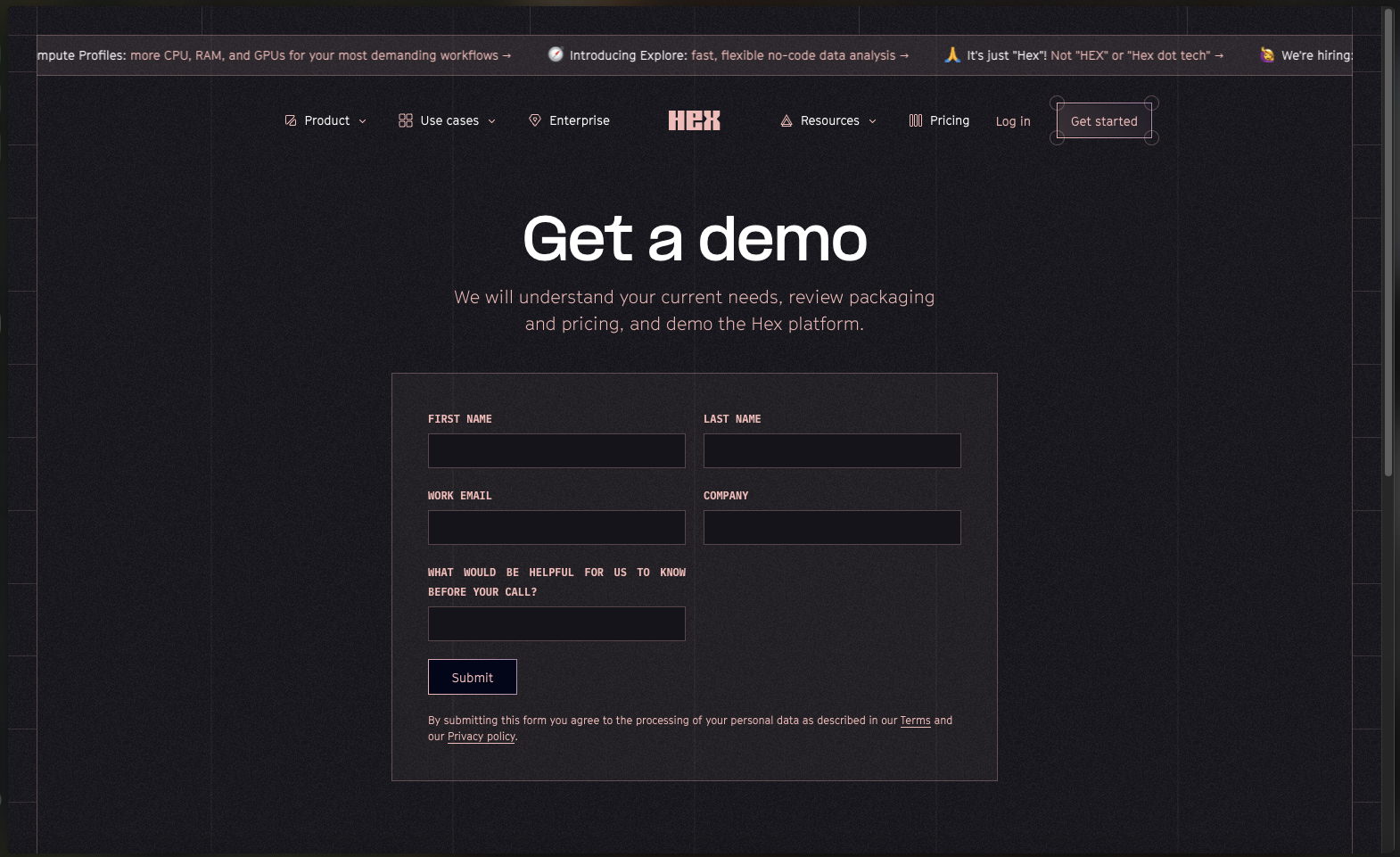

Forms SDK is used by customers like Hex to fully customize the form experience.


Features:

  • Form Submission Management. Effortlessly send form data to Default.

  • Event Emission. Hook into events like submission success or errors.

  • Scheduler Integration. Allow users to book meetings directly from your form.

Implementation

1. Create a form

2. Include the forms SDK web script

Add the SDK to your webpage:

const script = document.createElement('script');
script.src = "https://import-cdn.default.com/sdk.js";
script.async = true; // Optional: Load asynchronously
document.head.appendChild(script);

Access the SDK:

const sdk = window.DefaultSDK;

3. Available methods

helloworld() : Logs a welcome message to verify that the SDK is loaded correctly.

sdk.helloWorld();
// Logs: "Hello World! Welcome to Default.com"

submit() : Sends form responses to Default and manages your event callbacks based on workflow steps.

sdk.submit(
  submission: {
    form_id: number;
    team_id: number;
    responses: Record<string, string | number | boolean>;
    questions: Array<{
      id: string;
      name: string;
      type: string;
      options?: Array<string | number>;
    }>;
  },
  callbacks?: {
    onSuccess?: (data) => void;
    onError?: (error: Error) => void;
    onSchedulerDisplayed?: (data) => void;
    onSchedulerClosed?: (data: { redirectUrl?: string }) => void;
    onMeetingBooked?: (data: { payload }) => void;
  }
): Promise<void>;
​

4. Submission and Callbacks

Submission

Required javascript object containing form data and metadata:

  • form_id (number, required): Unique form identifier

  • team_id (number, required): Team identifier

  • responses (object, required): Question ID to response mapping

  • questions (array, required): Question metadata array

Question attributes

For each object in the question array, the following key value pairs are required:

  • id (required): The unique identifier for the question.

  • name (required): The human-readable name of the question.

  • type (required): The type of question input:

    • email : The lead's email address.

    • input : Short Text input fields.

    • textarea : Long Text input fields.

    • select or radio : Single Select input where leads can only select one option.

    • checkbox or select-multiple : Multi Select input where leads can select multiple options.

    • tel : Phone number.

  • options (optional): For multiple-choice questions, an array of valid options.

  • lead_attribute (optional): The lead attribute in Default you want to map the input field to:

    • first_name : The lead's first name.

    • last_name : The lead's last name.

    • phone : The lead's phone number.

    • role : The lead's role at their company.

    • title : The lead's job title.

    • city : The city that the lead is located in.

    • location : The address of the lead.

    • company : The company's name.

    • industry_group : The company's industry.

    • head_count : The company's headcount.

Example submission:

const submission = {
  form_id: FORMID,
  team_id: TEAMID,
  responses: {
    email: "test@test.com",
    industry: "automotive",
  },
  questions: [
    {
      id: "email",
      name: "Email",
      type: "email",
      options: [],
    },
    {
      id: "industry",
      name: "Industry",
      type: "input",
      options: ["automotive", "computers", "software"],
    },
  ],
};

Callbacks (Optional)

The following event handlers are available through the lifecycle of a form submission:

const callbacks = {
  onSuccess: (data) => {
    console.log("Submission successful!", data);
  },
  onError: (error) => {
    console.error("Submission failed:", error.message);
  },
  onSchedulerDisplayed: (data) => {
    console.log("Scheduler displayed:", data);
  },
  onSchedulerClosed: (data) => {
    console.log("Scheduler closed, optional redirect: " + data.redirect);
  },
  onMeetingBooked: (data) => {
    console.log("Meeting booked successfully!", data.payload);
  },
};

Scheduler display control

Use this when you need to have control over where and when a scheduler is displayed.

// Disable automatic scheduler display and manually control when/where it appears
DefaultSDK.submit(submission, {
  autoSchedulerDisplay: false, // Prevents automatic scheduler display
  onSuccess: (response) => {
    console.log("Submission successful:", response);

    // Display scheduler in custom iframe
    const iframe = document.getElementById("scheduler");
    if (iframe) {
      iframe.style.display = "block";
      iframe.src = response.body.stepDetails.url;
    }
  }
});

When autoSchedulerDisplay is set to false, the scheduler won't automatically appear after form submission. Instead, you receive the scheduler URL in the onSuccess callback, giving you full control over when and where to display it. All scheduler-related callbacks (onSchedulerDisplay, onSchedulerClosed, onMeetingBooked) continue to fire normally, allowing you to maintain full visibility into the scheduler's lifecycle while customizing its presentation.

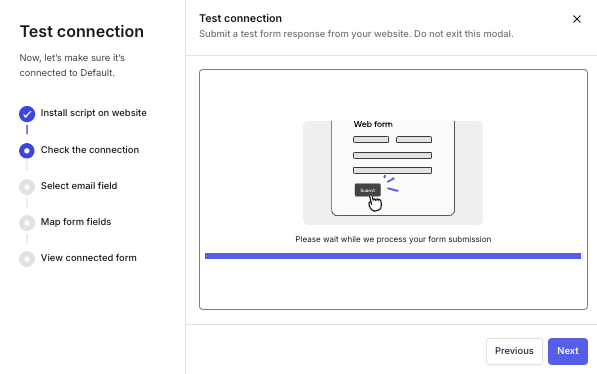

5. Create a test submission

Create a test submission by submitting a form entry to ensure your setup is working properly. Then, navigate to the Check the Connection step in Default to verify the integration.Complete the Configuration by:

  • Select the email field to identify the lead.

  • Map your form fields to the corresponding Default attributes.

  • Assign a unique name to the form for easy identification.

This process ensures your form is correctly integrated and ready for future submissions.


Forms SDK example

Below is an example snippet that submits a form response using forms SDK.

const script = document.createElement('script');
script.src = "https://import-cdn.default.com/sdk.js";
script.async = true;

script.onload = function() {
    console.log("SDK script loaded, attempting to use DefaultSDK...");


    const submission = {
        form_id: 867190,
        team_id: 7,
        responses: {
            email: "luke@tatooine.galaxy",
            rebel_name: "Luke Skywalker",
            home_planet: "Tatooine",
            spacecraft_type: "X-wing",
            combat_experience: "Yes",
            force_sensitive: "Yes",
            preferred_division: "starfighter_corps",
            mission_availability: "immediate",
            droid_companion: "R2-D2",
            imperial_history: "No"
        },
        questions: [
            {
                id: "email",
                name: "Contact Email",
                type: "email",
                options: []
            },
            {
                id: "rebel_name",
                name: "Full Name",
                type: "input",
                options: []
            },
            {
                id: "home_planet",
                name: "Home Planet",
                type: "input",
                options: []
            },
            {
                id: "spacecraft_type",
                name: "Primary Spacecraft",
                type: "select",
                options: ["X-wing", "Y-wing", "A-wing", "B-wing", "Other"]
            },
            {
                id: "combat_experience",
                name: "Do you have combat experience?",
                type: "select",
                options: ["Yes", "No"]
            },
            {
                id: "force_sensitive",
                name: "Are you Force-sensitive?",
                type: "select",
                options: ["Yes", "No"]
            },
            {
                id: "preferred_division",
                name: "Preferred Division",
                type: "select",
                options: ["starfighter_corps", "ground_forces", "intelligence", "support_services"]
            },
            {
                id: "mission_availability",
                name: "When can you start missions?",
                type: "select",
                options: ["immediate", "within_week", "within_month", "need_training"]
            },
            {
                id: "droid_companion",
                name: "Droid Companion (if any)",
                type: "input",
                options: []
            },
            {
                id: "imperial_history",
                name: "Have you ever served the Empire?",
                type: "select",
                options: ["Yes", "No"]
            }
        ]
    };

    const callbacks = {
        onSuccess: (data) => console.log("Welcome to the Rebellion!", data),
        onError: (error) => console.error("Submission failed:", error.message),
        onSchedulerDisplayed: (data) => console.log("Scheduler displayed:", data),
        onSchedulerClosed: (data) => console.log("Scheduler closed:", data),
        onMeetingBooked: (data) => console.log("Meeting booked:", data.payload)
    };

    try {
        console.log("Attempting submission with DefaultSDK...");
        // Using the DefaultSDK that we found in the window properties
        window.DefaultSDK.submit(submission, callbacks);
    } catch (e) {
        console.error("Error during submission:", e);
        console.log("DefaultSDK object:", window.DefaultSDK);
    }
};

script.onerror = function() {
    console.error("Failed to load the Forms SDK");
};

document.head.appendChild(script);​

Content Security Policy

If adding to a Content Security Policy (CSP), add *.default.com to your existing lists.For a more specific list of subdomains, you can add the following:

script-src 'self' https://import-cdn.default.com;
style-src 'self' https://import-cdn.default.com;
connect-src 'self' https://nucleus.default.com;

Error handling

Client-Side validation (SDK errors emitted via callback)

Errors will be triggered if:

  • Any of the following fields: form_id, team_id, responses, questions, or email are missing

  • responses is not an object

  • questions is not an array

  • A response key does not match or correspond to an entry in the questions array

​Server-Side Errors (400 Bad Request)

The server will return a 400 error if:

  • submission is missing

  • form_id or team_id is missing

  • responses or questions are missing

  • email is missing

  • The questions[] array does not match the expected format

  • No valid responses are found​

Server-Side Errors (500 Internal Server Error)

  • The endpoint is experiencing an outage

Response structure

Success

{
  "body": {
    "stepDetails": {
      "inline": true, // If true, display a scheduler modal; if false, redirect to a URL
      "url": "https://example.com/scheduler-or-redirect-url"
    }
  },
  "success": true
}

Error

{
  "error": "Error message explaining why the response was not processed.",
  "success": false
}

Examples of forms SDK​

Hex
